拉坯機

適用于拉坯、上釉、裝飾和修坯；

無級變速，旋向可逆；

轉盤材質鋁合金；

無振動，平衡優；

均裝有漏電自動斷路器與外殼接地防靜電裝置；

該機被2017/2019/2021中國全國陶瓷職業技能競賽總決賽指定為專用機。

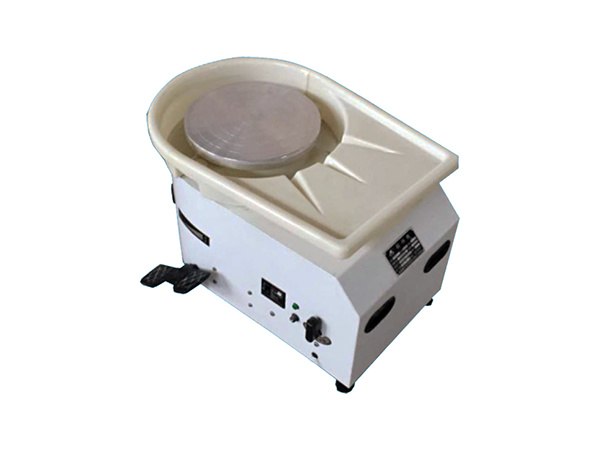

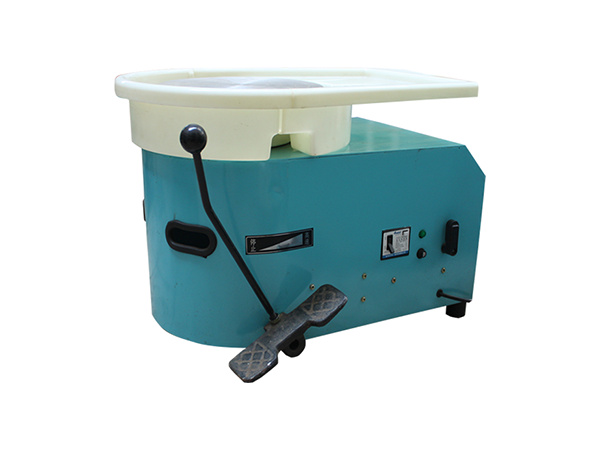

Pottery wheels

Suitable for throwing, glazing, decorating and trimming.

Stepless speed change, reversible rotation.

Aluminum alloy wheel head.

No vibration, excellent balance.

All are equipped with automatic leakage circuit breaker and shell grounding anti-static device.

Designated as a special machine by the final of the 2017/2019/2021 China National Ceramic Professional Skills Competition.

便攜式桌上用小型機；

電源:220V,功率200W；

轉盤直徑28cm,觸摸屏調速；

插電與充電可選；

裝上3個支腳 亦可落地使用。

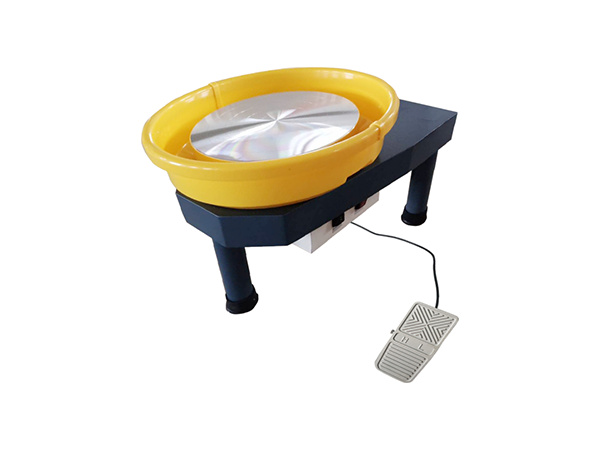

TYL-1 Portable pottery wheel

Small, portable table-top pottery wheel.

Voltage: 220V. Power: 200W.

Wheel head diameter: 28cm. Speed is controlled by a touch screen.

Plugging-in and charging are optional.

With 3 legs installed, it can also be used on the ground.

觸摸屏與腳踏板無級變速；

可變速，也可定速，適用于少年兒童

或初學者；

電源220V，功率200w；

轉盤直徑28cm。

TYL-2 pottery wheel

Stepless speed change with touch screen and foot pedal.

Variable speed or fixed speed, suitable for children and teenagers or beginners.

Voltage: 220V, power: 200w.

Wheel head diameter: 28 cm.

腳踏板與觸摸屏無級變速；

電源220V，功率300w；

轉盤直徑32cm。

TYL-3 pottery wheel

Stepless speed change with touch screen and foot pedal.

Voltage: 220V, power: 300w；

Wheel head diameter: 32cm.

腳踏板與觸摸屏無級變速；

電源220V，功率400w；

轉盤直徑32cm。

TYL-4 pottery wheel

Stepless speed change with touch screen and foot pedal.

Voltage: 220V, power: 400w.

Wheel head diameter: 32cm.

腳踏板無級變速；

電源220V，功率250w，裝有儲能機構，故出力大；

整機全封閉，更安全；

轉盤直徑30cm。

TYL-5 pottery wheel

Stepless speed change with foot pedal.

Voltage: 220V, power: 250w.

Equipped with energy storage mechanism, so the output force is large.

The whole machine is fully enclosed, which is safer.

Wheel head diameter: 30cm.

腳踏板與觸摸屏無級變速；

電源220V，功率400w；

轉盤直徑32cm；

T型機架，落地穩重且高低可調。

TYL-6 pottery wheel

Stepless speed change with touch screen and foot pedal.

Voltage: 220V, power: 400w.

Wheel head diameter: 32cm.

With T-shaped rack, it can stay on the ground stably and the height is adjustable.

腳踏板無級變速；

電源220V，功率400w，裝有儲能機構，故出力大；

整機全封閉，更安全；

轉盤直徑30cm。

TYL-7 pottery wheel

Stepless speed change with foot pedal.

Voltage: 220V, power: 400w.

Equipped with energy storage mechanism, so the output force is large. The whole machine is fully enclosed, which is safer.

Wheel head diameter: 30cm.

腳踏板調速；

電源220V，功率600w；

配轉速顯示器；

轉盤直徑35cm。

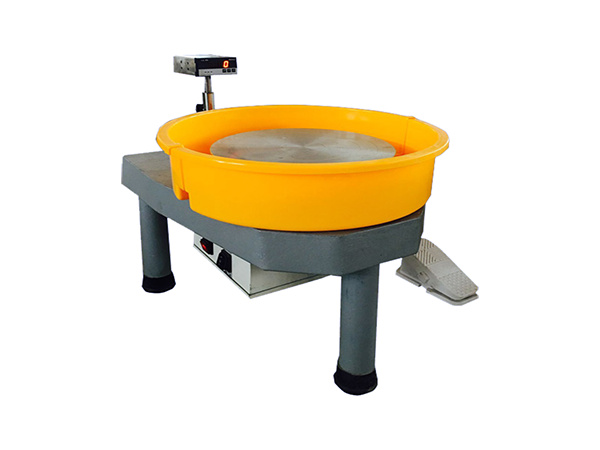

TYL-8 pottery wheel

Speed is adjusted with foot pedal.

Voltage: 220V, power: 600w.

With speed display.

Wheel head diameter: 35cm.

無刷電機，腳踏板調速；

電源220V，功率500~800w；

轉盤直徑36cm。

高低可調.

TYL-9 pottery wheel

With brushless motor, the speed is adjusted with foot pedal.

Voltage: 220V, power: 500~800w.

Wheel head diameter: 36cm.

Height is adjustable.
